Rapid Multi-Tire Air System – NextGen StrikeShield™ 300 PSI Braided Hose
Connect Once. Control All Four Tires.
Air Down and Air Up All Four Tires at the Same Time
The Thor’s Lightning Rapid Multi-Tire Air System connects all four tires to one central manifold. Stop moving an air hose from tire to tire and manage pressure from a single location.
Every system features heavy-duty 300 PSI StrikeShield™ braided hybrid hoses, universal lock-on air chucks, a digital pressure display, and your choice of Standard or TotalControl™ manifold.
AIR COMPRESSOR SOLD SEPARATELY.
Why Use a 4-Tire Air System?
Connect Once
Attach the system to all four tires instead of moving a hose around your vehicle.
Air Up or Air Down
Inflate or deflate up to four tires simultaneously from one central manifold.
Equalize Pressure
Keep the system connected briefly with airflow closed to help equalize pressure across all connected tires.
Save Trail Time
Spend less time managing tire pressure and more time driving.
Built for Real Use
Heavy-duty hoses, reinforced fittings, lock-on air chucks, and a rugged carrying bag are ready for repeated trips.
Choose Your Manifold
Choose straightforward manual control or preset pressure automation.
Rugged Simplicity
Standard Hammer Manifold
Best for drivers who want straightforward manual control.
- Inflate or deflate up to four tires simultaneously
- Digital pressure monitoring
- Manual airflow control
- No preset pressure programming
- No manifold battery charging required
Preset Pressure Control
TotalControl™ Hammer Manifold
Best for drivers who want set-and-forget pressure control.
- Set your target PSI using the + and - buttons
- Automatically stops airflow at the selected pressure
- Preset inflation and deflation control
- Digital pressure display
- USB-C rechargeable lithium battery
Important: The TotalControl™ manifold controls airflow but does not generate compressed air. Inflation requires an external compressor or compatible air source.
NextGen StrikeShield™ Braided Hose System
This is not a basic rubber hose kit.
StrikeShield™ braided hybrid hoses are engineered for flexibility, durability, and repeated use in demanding environments.
-
Rated to 300 PSI: Built with a substantial safety margin for vehicle tire inflation. -
Abrasion-resistant braiding: Helps protect against dirt, rocks, pavement, and trail wear. -
Hybrid rubber/PVC core: Designed to remain flexible in both hot and cold conditions. -
Cold-weather pliability: Easier to deploy and pack away than stiff, brittle hoses. -
High-heat performance: Built for summer travel, desert use, and demanding inflation sessions. -
Reinforced fittings: Designed for repeated inflation and deflation cycles.

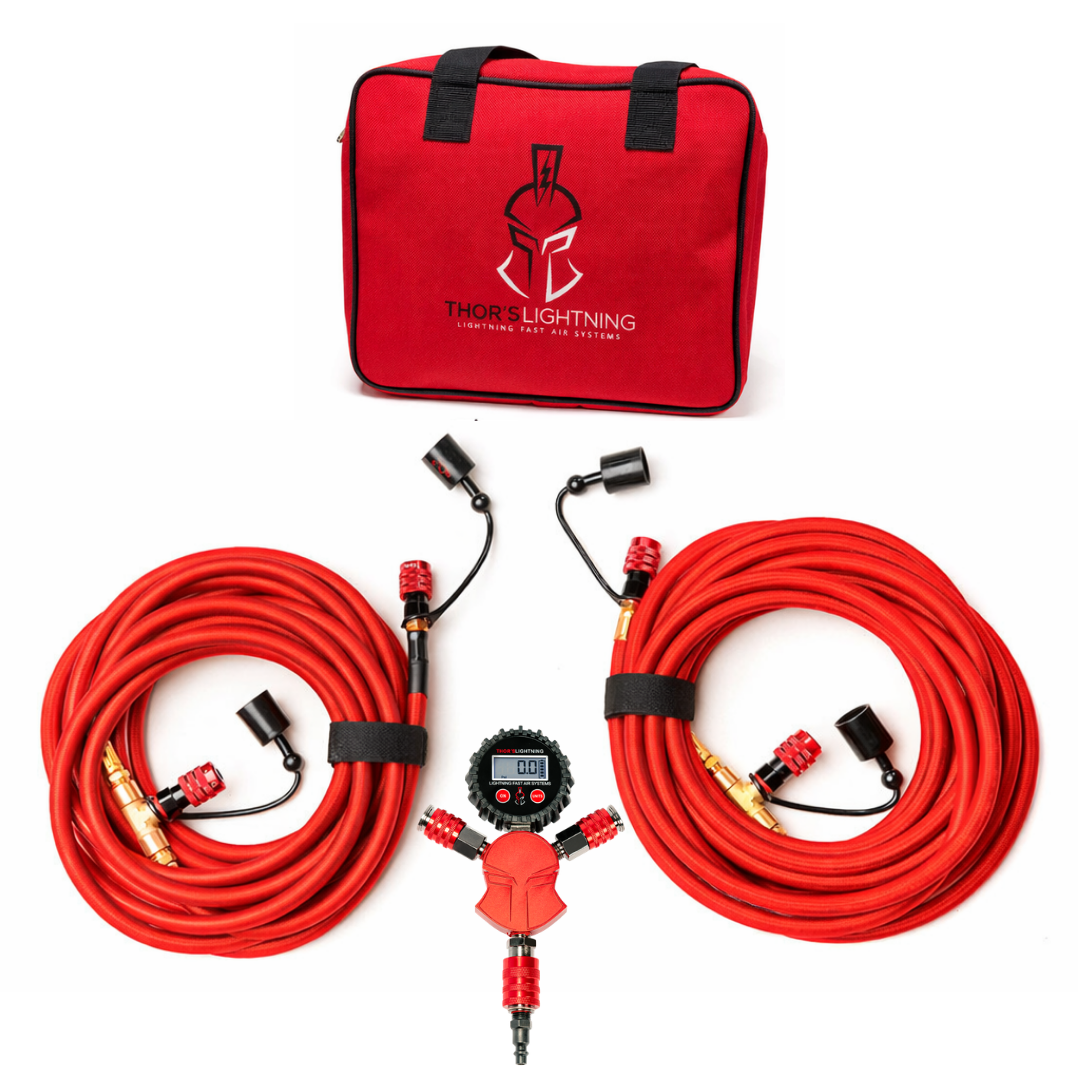

What’s Included
- Your selected Standard or TotalControl™ Hammer Manifold
- NextGen StrikeShield™ braided 4-tire hose system
- Four Dynamo lock-on air chucks
- Digital pressure monitoring
- Heavy-duty zippered nylon carrying bag with MOLLE-style webbing
Vehicle Compatibility
Designed for cars, trucks, SUVs, Jeeps, overland vehicles, tow vehicles, and trailers with compatible valve stems.
- Standard Schrader valve stems
- Short valve stems commonly found on Toyota vehicles
- Apex RPV valve stems
- Most common factory and aftermarket vehicle valve stems
Air compressor, compressor power cables, and other pictured accessories are not included unless specifically selected as part of a bundle.
Technical Specifications
| Hose reach | 25.5 feet per side |
|---|---|
| Maximum hose pressure | 300 PSI |
| Hose construction | StrikeShield™ braided hybrid rubber/PVC |
| Functions | Multi-tire inflation, deflation, pressure monitoring, and pressure equalization |
| Tire connections | Four Dynamo lock-on air chucks |
| Air-source connection | Quick-connect air fitting |
| Storage | Heavy-duty zippered carrying bag |
Complete Your Air System
Need a Compressor?
Pair your Rapid Multi-Tire Air System with the Thor’s Lightning Strike Dual Air Compressor for a complete portable four-tire inflation and deflation setup.
- 10.6 CFM free-flow output
- High-output dual-motor design
- TotalControl™ automatic PSI shutoff
- 75% duty cycle for extended inflation sessions
- Designed to work with Thor’s Lightning multi-tire air systems
View the Lightning Strike Compressor →
Built for the Trail. Backed for the Long Haul.
Includes a 3-year limited warranty. Eligible customers may extend coverage to 5 years by purchasing the available extended warranty.
Connect all four tires. Control pressure from one location. Get back on the road or trail faster.
